YOUR CUSTOM FLAT PANEL FABRICATOR SINCE 1971

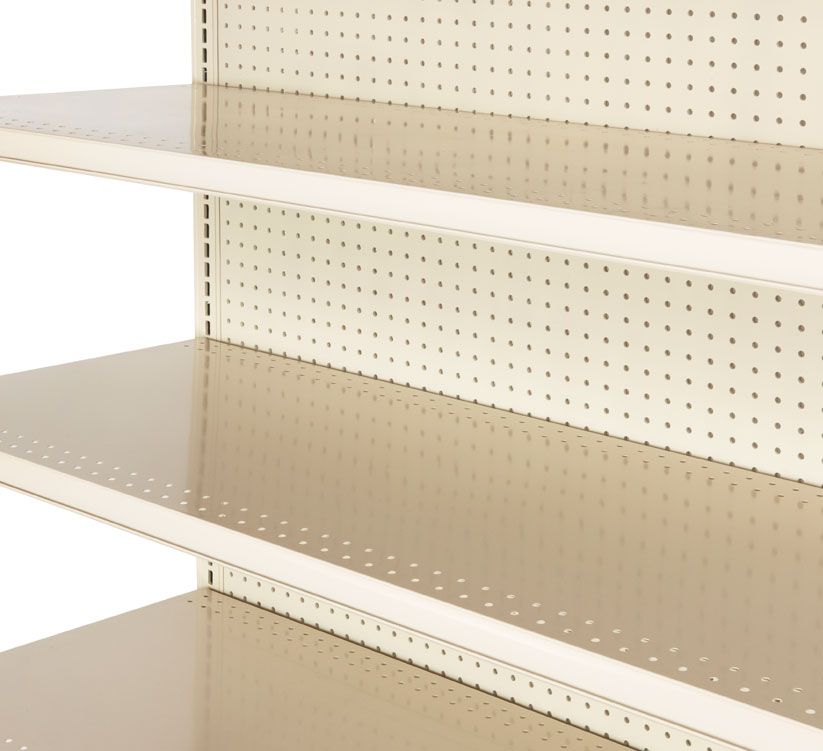

Panel Processing was founded over 50 years ago as the nation’s pegboard leader.  Although our product offering has grown immensely, pegboard is still one of our staple products.   The addition of our fabrication, coating and screen printing capabilities have changed the way pegboard is offered today. These boards are provided throughout North America for displays, gondola backers, plan-o-grams and more. With our multiple locations, Panel Processing has the capacity to produce more pegboard panels than any other fabricator in North America.

THE FEATURES & BENEFITS

We utilize CNC controlled punches, which produces clean and sharp pegboard holes with accurate margins.  Other benefits of the CNC controlled punch, is that you are not limited to standard pegboard patterns, allowing for varying spacing between rows leaving blank spaces for logos, screen printing, graphics or other design variations.

  • Standard Sheet Sizes:
    • 4′ x 8′
  • Standard Hole Patterns:
    • ½” x ½”, ½” x 1″, 1″ x 1″, 1″ x 2″ , 1″ x 3″ OC
    • Non-Standard Patterns Available
  • Standard Hole Diameters:
    • 9/32” (nominal 1/4”) & 3/16″ (nominal 1/8”)
  • Thickness Available:
    • 3.2mm (1/8”), 4.8mm (3/16”), 5.5mm (1/4″)
  • CNC controlled punches:
    • Produces clean and sharp pegboard holes with accurate margins
    • Not limited to standard pegboard patterns, allowing for varying spacing

FINISHES

  • Unfinished – paint grade

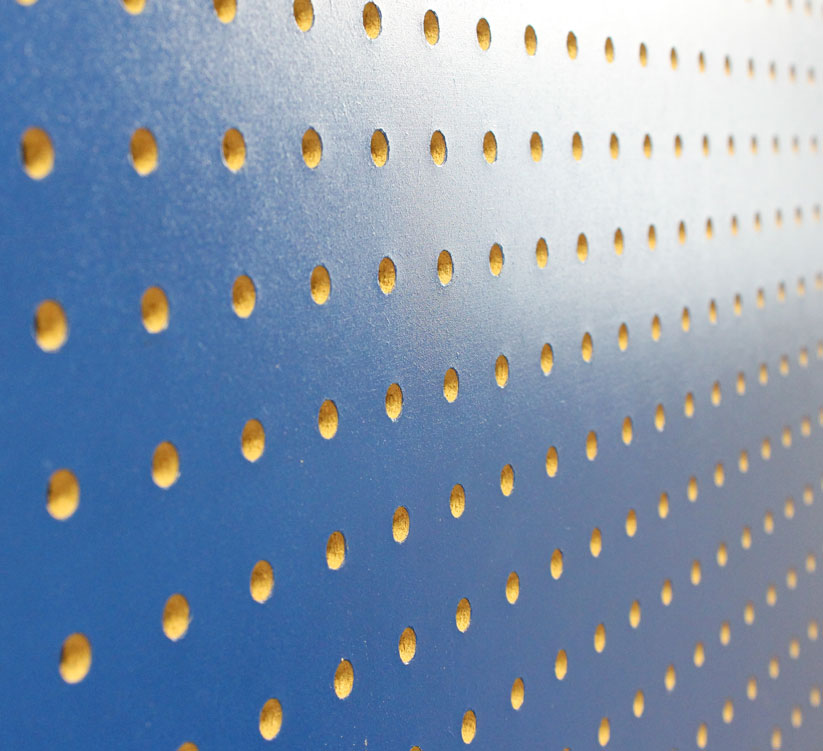

  • Painted – water based
  • Laminated – melamine paper
  • Eco-Finish paint coating for high definition direct-to-board digital printing
  • Woodgrain print – gravure printing

SUBSTRATE OR CORE MATERIAL

  • MDF and HDF
  • Particle Board
  • Plastic

CUSTOMIZE

  • Pegboard panels routed to custom shapes and sizes
  • Custom margins and spaces
  • Custom spacing of rows to allow for logos and graphics
  • Not limited to standard hole patterns
  • Slots also available – custom sizes and spacing

Colors shown in images are representative, please request a sample for accurate colors

Standard Hole Patterns:
½” x ½”,  ½” x 1″, 1″ x 1″, 1″ x 2″ , 1″ x 3″ OC

Standard Hole Diameters:
9/32” (nominal 1/4”) & 3/16″ (nominal 1/8”)
Non-Standard Patterns Available

Woodgrain Print Panel
Plastic
Particle Board
MDF and HDF

P.O.P. Display
Product Display
Retail
Juvenile Furniture
Toy & Game
