Shiplap Panels

Our Shiplap is a MDF plank prefinished with a wear resistant melamine paper in several realistic woodgrain designs. From gorgeous grains to rustic finishes, it’s easy to install and achieve professional looking results. Perfect for an accent wall behind a counter, a product display or simply draw the consumer’s eye.

TECHNICAL SPECIFICATIONS
  • Dimensions:
    Length: 8’, Thickness: 0.5”, Height: 5.938”, Face: 5.438”
  • Prefinished with melamine papers
  • Realistic wood and industrial designs, no painting required
  • Easy to cut and install (nails and adhesives sold separately)
  • Longer flange design creates the “gap” between boards for the shiplap look
  • Coordinating slatwall is available
  • For interior use only
See Available Colors
MATERIAL CALCULATOR

Using a measuring tape, measure the height and width in inches of the area you want to cover. Use the multiplier below to calculate the correct number of boards. We suggest adding an additional 10% of material.

8’ Shiplap multiplier = 0.267
Example room size in inches:

  • 96” H x 144” W = 13,824 square inches
  • Convert to feet: 13,824” / 144” = 96 square feet
  • Multiply the square feet by multiplier 0.267
  • 96’ x 0.267 = 25.63 pieces
  • If you would like to add 10% for scrap: 25.63 x 1.10 = 28.20
  • 28.20 round up to next whole piece = 29 total pieces
SUBSTRATE OR CORE MATERIAL
  • MDF

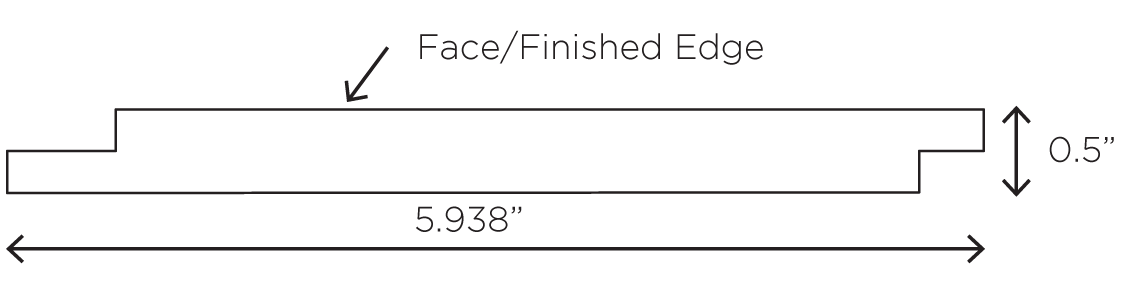

DIMENSIONS

Downloads

BEFORE & AFTER SHIPLAP INSTALLATION
Shiplap Dining Room BeforeShiplap Dining Room After

Aspen Oak installed over drywall

Shiplap Colors
